ICOM IC-M25

ICOM IC-M25

Latest Version - fitted with international and UK specific channels = CH37A and M2/P4

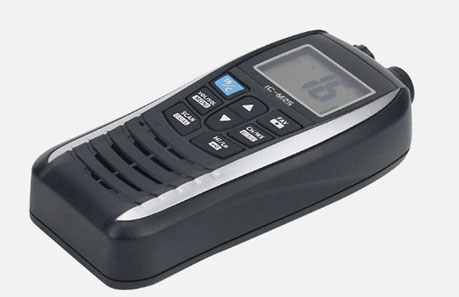

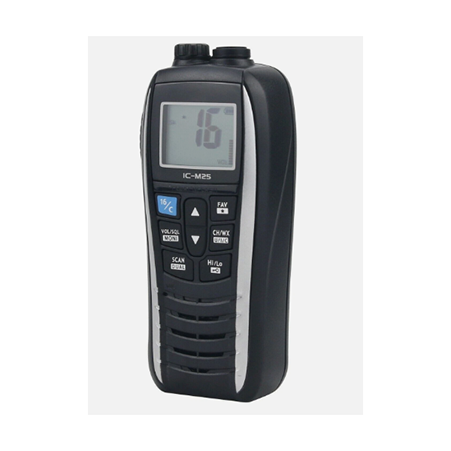

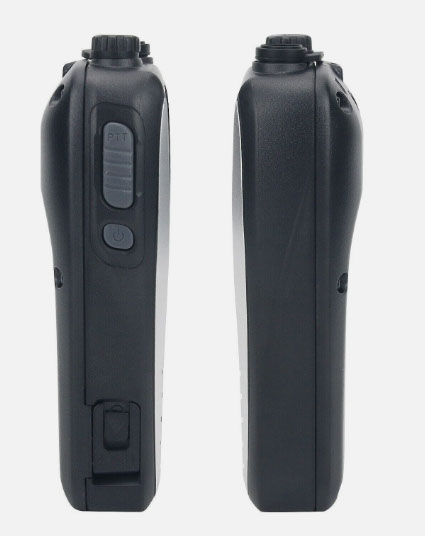

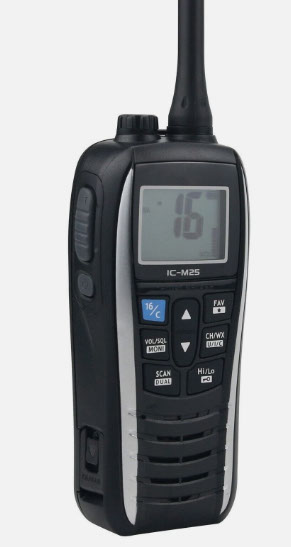

This is an Icom IC-M25 - VHF Marine band hand held radio. Similar to the IC-M37, but lighter and a little smaller.





It is IPX7 category waterproof - essentially this means you can drop it in the water where it will float and has a small flasher built in so you can find it in the dark! All the buttons and sockets are sealed making it a very handy emergency radio.



If you have a boat and don't yet have a radio, these can get you safe and able to communicate at a very reasonable price. Packed with features, but the critical ones are one-button controlled. It can operate on the the three main channels settings - International, the one most commonly selected in the UK but also has the USA and Canada settings available if you travel to these regions.



High Power output is 5W, and the Low Power setting is 1W.



Instant access to channel 16, and the small size fits easily in the pocket.



FREE Royal Mail SIGNED AND TRACKED DELIVERY INCLUDED





ICOM SPECIFICATION

General

Frequency range Tx 156.025–157.425 MHz

Rx 156.050–163.275 MHz

Usable channel groups INT, USA, CAN, WX channels

Type of emission 16K0G3E (FM)

Power supply voltage 3.7 V DC nominal

Current drain Tx 2.3 A

Rx (Internal SP/External SP) 300 mA/200 mA (Max. audio)

Operating temperature range –20°C to +60°C; –4°F to +140°F

Antenna impedance 50 Ω

Dimensions (W×H×D)

(Projections not included) 56.6×134.2×30.5 mm;

2.2×5.3×1.2 in

Weight (approximately) 220 g; 7.7 oz

(With FA-SC59V and MB-133)

Transmitter

Output power 5 W (approximately)/1 W

Max. frequency deviation ±5.0 kHz

Frequency stability ±10 ppm

Spurious emissions –68 dBc typical

Adjacent channel power 70 dB

Residual modulation 40 dB

Receiver

Sensitivity 0.25 μV typical (at 12 dB SINAD)

Squelch sensitivity 0.25 μV typical (at threshold)

Adjacent channel selectivity 70 dB typical

Spurious response 70 dB typical

Intermodulation 70 dB typical

Audio output power

(at 10% distortion) Internal SP 550 mW typical (12 Ω load)

External SP 300 mW typical (4 Ω load)

Applicable IP Rating

Ingress Protection Standard

Water IPX7 (Waterproof protection)

Measurements made in accordance with TIA/EIA-603.

All stated specifications are subject to change without notice or obligation.





PLEASE NOTE - All radios described as waterproof rely on making sure the battery compartments and flaps are secure and correctly fitted - if you remove a pack, cover or flap please make sure you replace it carefully so the water exclusion seals can make good contact. If the batteries or covers are not fitted properly - water WILL get inside. It's very important to check they are closed properly.







£159 inc VAT (132.50+ VAT)
