This is a Icom IC-M330G - VHF Marine band radio with built in GPS.





A solid, dependable VHF marine radio. Small in size but with easy access buttons to ch 16, and a simple up/down channel change. Favourite channels can be added to the memory and then the radio will scan them, stopping on activity. GPS built in so your exact location can be sent to other radios, and by the emergency button that adds your MMSI number  so the Coastguard know who you are, and where you currently are. A small GPS antenna plugs into the rear of the radio.



OFCOM will provide MMSI numbers included with the current free marine licence - so in an emergency, your details can be provided to the emergency services.



Has International channels, plus US and Canada if required.

Full UK channel set, including Channels 37A, 80 and P2/M4 .



Price includes free Royal Mail Tracked 24 delivery

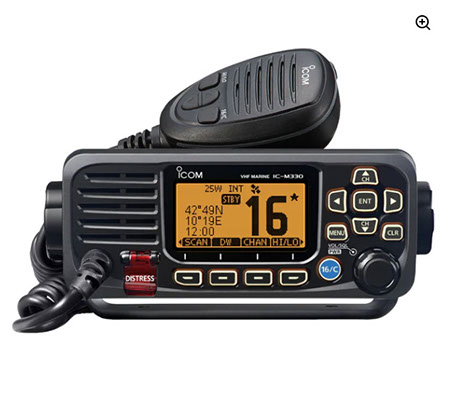

Icom IC-M330G VHF Radio with GPS Ultra Compact Model

Icom have now entered the ultra compact VHF market with the IC-M330GE. This small space saving radio can now fit in those tight spaces where a traditional full sized radio cannot. It may be small in size but is certainly not lacking in features.



Ultra Compact Body, Flexible Installation

The compact IC-M330G measures only 156.5 (W) × 66.5 (H) ×110.1 (D) mm making it ideal for a cockpit where space is limited.



Intuitive User Interface

A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.



New Speaker Delivers Dynamic, Clear Audio

A newly designed speaker delivers distortion-free clear audio even at full volume. It provides dynamic and clear audio over a wide bass and treble range.



Class-Leading Receiver Performance

The IC-M330G’s receiver provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)



Built-in Class D DSC

The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.



Built in GPS Receiver and External GPS Antenna

The GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls. An external GPS antenna is supplied to maximise coverage.



IPX7 waterproof (1 m depth of water for 30 minutes)

AquaQuake™ prevents audio degradation from a water-logged speaker

Common NMEA interface for external GPS/NAV connection

MA-500TR Class B AIS transponder compatible

Tag scan and favourite channel functions

Dual/tri-watch function for monitoring CH16 and/or call channel

Priority scan function

Display and keypad backlighting

External speaker connection

3-digit or 4-digit channel display selectable

NMEA0183 input and output

UK Marina channels

Self adhesive external GPS/GLONASS antenna

Specifications

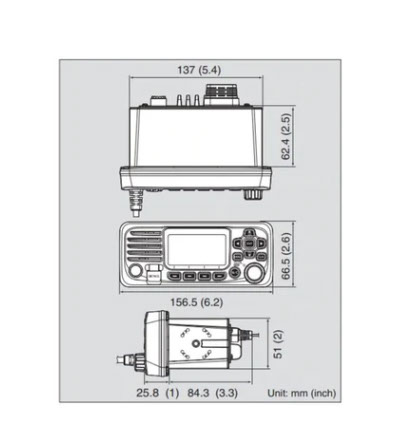

Size W x H x D: 156.5 x 66.5 x 110.1mm

Cutout W x H: 137 x 51mm

Weight (approx.) 0.8kg

Power supply: 10.8-15.6 V DC

Waterproof: IPX7

External GPS/GLONASS antenna size W x H x D: 37 x 37 x 10mm

External GPS/GLONASS antenna cable length:  5m

In The Box

IC-M330G VHF

Mounting Bracket & Knobs

Mic Hanger and screws

Fused power cable

Simple Flush mount kit

GPS/GLONASS external antenna









Price includes 1st class tracked delivery by Royal Mail.



(please note this radio includes channel 80 (UK Marina Channel) and also operates on Ch 37(M1) 157.850MHz and Ch (M2/P4) 161.425MHz)
